Ob Chav Shaftless Ntsia Hlau Conveyor
hauvkev taw qhia
Ob npaug -Screw Conveyor thiab Shaftless Screw Conveyors tau muab faib ua ob hom: ntsia hlau conveyors thiab shaftless ntsia hlau conveyors raws li daim ntawv conveying. Ntsia hlau conveyors yog tsim rau conveying qhuav hmoov cov ntaub ntawv thiab cov khoom me me uas tsis muaj viscosity, thaum shaftless ntsia hlau conveyors yog tsim rau conveying nplaum thiab yooj yim entangled cov ntaub ntawv.Muaj ib leeg shafted los yog shaftless ntsia hlau conveyor raws li tau zoo raws li multi-shafted ntsia hlau conveyor thiab multi-shaftless ntsia hlau conveyor.
Niaj hnub no peb yuav ua kom paub ib tug ob chav shaftless ntsia hlau conveyor .Qhov ob shaftless ntsia hlau conveyor kuj yog hu ua ntxaib shaftless ntsia hlau conveyor .Nws yog muaj trough plhaub, rotating shaftless ntsia hlau davhlau, hauv ob sab phlu, lub cev muaj zog, reducer thiab bearings, thiab lwm yam. Nws muaj qhov ntev ntawm kev thauj mus los (qhov siab tshaj plaws yog 20m), muaj zog tiv thaiv -kev ua haujlwm zoo, kev tiv thaiv ib puag ncig zoo, lub zog siab, tsis muaj zog noj, compact qauv, yooj yim ua haujlwm, ob npaug - hniav qauv, thiab hnav tsis kam thiab ua haujlwm ntev.
Ob chav shaftless ntsia hlau conveyors yog customized raws li cov kev cai tshwj xeeb. Nws yog yooj yim rau nruab nrab loading los yog unloading. Kev ua haujlwm yog yooj yim thiab yooj yim, thiab cov khoom raug cais tawm ntawm lub ntiaj teb sab nraud thaum lub sij hawm thauj khoom, uas ua kom muaj kev sib khi zoo.
Kuj tseem muaj peev xwm ntxiv qee yam khoom siv rau ntawm qhov no ob chav shaftless ntsia hlau conveyors .Xws li kev pub noj hopper, txav tau lub log, nqa cov lugs, nameplates, thiab lwm yam.

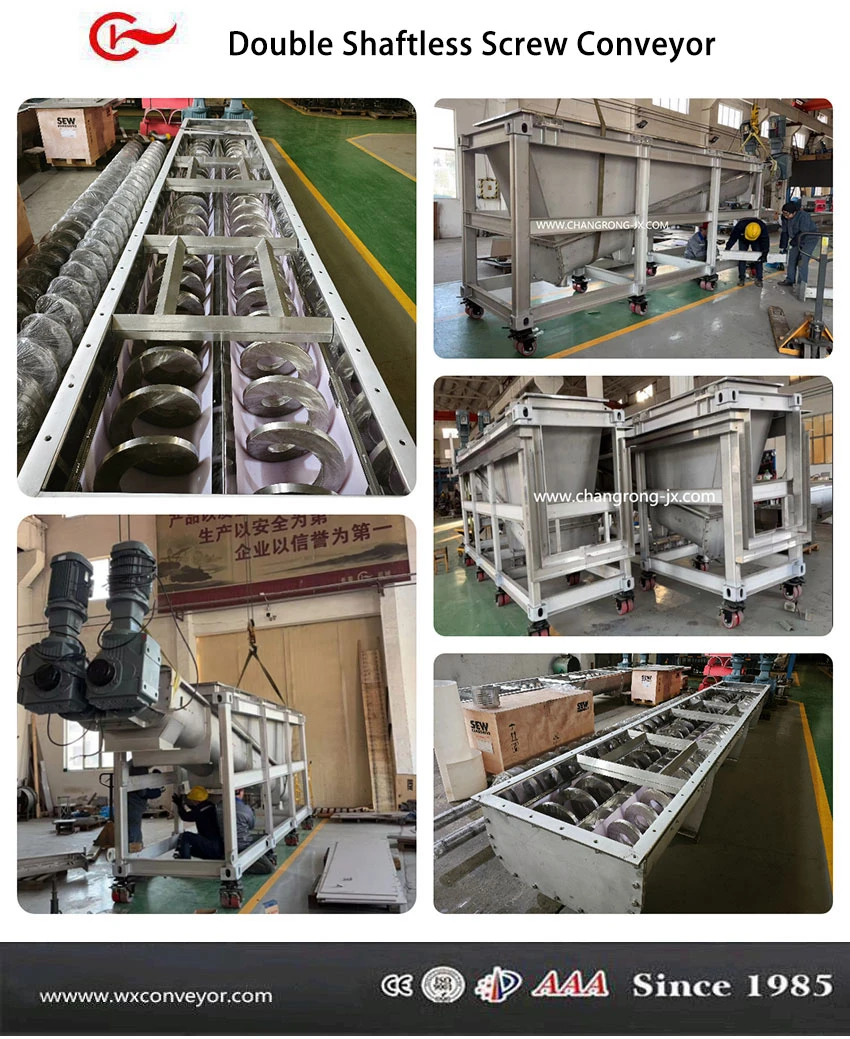

Tam sim no cia saib nws cov duab kos duab thiab cov duab hauv qab no:
Ob chav shaftless ntsia hlau conveyor cov ntaub ntawv
2.1 Cov khoom siv ntawm shaftless ntsia hlau conveyor
Tag nrho cov kev sib cuag nrog cov khoom yog ua los ntawm 316L, fasteners ntawm lub brackets, thiab lwm yam. yog tag nrho cov 316L.
2.2 Conveyed khoom ntawm ob shaftless ntsia hlau conveyor
Qhov no ob chav shaftless ntsia hlau conveyor yog siv los thauj sludge rau tsoom fwv qhov project.
Ob chav ntsia hlau conveyor Specification
|
Component lub npe |
Loj |
Cov neeg siv khoom xav tau |
|
Ntsia hlau hniav |
Ø 300 mm |
|
|
Screw hniav pitch |
Variable los ntawm 200mm mus rau 300mm |
|
|
Screw hniav thickness |
30 hli |
|
|
Screw conveyor qhov ntev |
5500 hli |
|
|
Tsav system |
7.5KW ntawm 12 rpm |
|
|
Tsav kev taw qhia |
Tsav yog SEW Tsav, series "R", helical iav reducer, ncej mounted c/w 7.5KW-electric motor 380v-3ph-50 Hz thiab IP55 ntsuam xyuas thiab nyob rau ntawm qhov kawg inlet ntawm conveyor |
|
|
Tes |
Nyob ntawm qhov xav tau .Nws tuaj yeem thim rov qab. |
|
|
Screw conveyor qhov inclination |
130 |
|
|
Kev kho saum npoo |
Sab hauv yog polished rau 200 mesh thiab sab nrauv yog pickled thiab passivated |
|
|
Net nyhav |
3500kgs ib |
|
|
Packing loj |
TBD |
|
|
Ntim hom |
Los ntawm rooj plaub plywood (export standard) |
|
|
Qhov hnyav tag nrho |
4 200kg |
|
|
Lub sijhawm tsim khoom |
30 hnub rau 45 hnub tom qab them nyiaj, uas tuaj yeem sib tham raws li qhov kawg |
|
|
Lub sijhawm them nyiaj |
30% them ua ntej los ntawm T / T, 70% yuav tsum sib npaug ua ntej xa khoom |
Muaj peev xwm sib tham tau. |
|
Lub sijhawm lav |
12 lub hlis tom qab pib ntawm qhov chaw |
|
|
Qhov chaw pabcuam |
Peb tuaj yeem xa cov kws tshaj lij mus rau qhov chaw yog tias tsim nyog |
Cov neeg ua haujlwm sib dhos ob txhais ceg rau ob chav shaftless ntsia hlau conveyors .Qhov kev txhim khu kev qha thiab muaj zog ob txhais ceg yog qhov zoo rau ob chav shaftless ntsia hlau conveyor kev ua haujlwm ruaj khov.Nrog lub log txav tau, qhov no ob chav shaftless ntsia hlau conveyor tuaj yeem txav mus rau hauv kev tsim khoom raws li kev xav tau.
Kev tshuaj xyuas
Peb ua cov txheej txheem kuaj xyuas nruj thiab kev npaj ua haujlwm rau txhua qhov haujlwm.
1 Cov ntaub ntawv raw ntawm ob chav shaftless ntsia hlau conveyor tuaj yeem taug qab.Peb yuav siv spectral analyzer rov- xyuas tag nrho cov ntaub ntawv raw raws li cov ntaub ntawv pov thawj los ntawm sub- cov neeg muab khoom .Tsuas yog cov ntaub ntawv pov thawj pom zoo tuaj yeem siv rau fabrication.
2 Rau cov machining qhov chaw, peb muaj cov txheej txheem tshuaj xyuas thiab yuav ua cov ntaub ntawv rau txhua qhov chaw .Tsuas yog lub tshuab pom zoo siv tau rau cov txheej txheem fabrication tom ntej.
3 Rau kev tawm -sourcing qhov chaw, bearing, lub cev muaj zog thiab reducers, peb xaiv cov khoom lag luam txhim khu kev qha .Tsis tas li ntawd peb siv cov khoom tsim nyog uas tau pom zoo los ntawm cov neeg yuav khoom.
4. Rau qhov vuam, nws tuaj yeem ua tau los ntawm 100% pom kev zoo li tuaj yeem ua NDT raws li tus neeg yuav khoom xav tau.
5 Rau lub Hoobkas lees txais kev kuaj ntawm conveyor, peb yuav ua FAT daim ntawv qhia thiab xa mus rau tus neeg yuav khoom rau daim tshev .Tsuas yog cov neeg siv khoom pom zoo tuaj yeem xa tuaj rau tus neeg yuav khoom.
6 Peb yuav xa tag nrho cov ntaub ntawv soj ntsuam thawj, phau ntawv qhia thiab cov npe khoom seem rau tus neeg yuav khoom.
